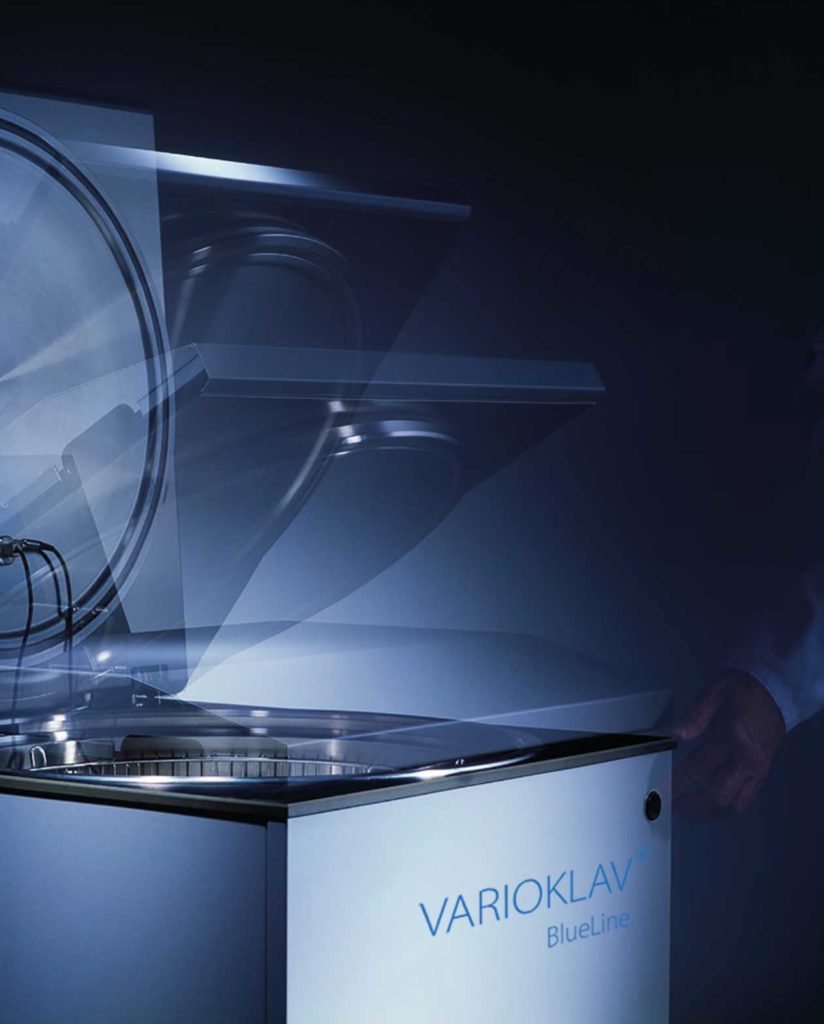

VARIOKLAV® BlueLine Floor-Standing Autoclaves
The premier choice in basic floor-standing units
Our VARIOKLAV® BlueLine floor-standing autoclaves operate reliably and quickly, and offer ample space for instruments and items to be sterilised: Choose between chamber depths of 600 to 800 millimetres and benefit from numerous module options that allow you to customise your vertical floor-standing unit: comprehensive process documentation, media temperature control, pre-vacuum and much more are combined in a single, reliable unit with BlueLine floor-standing autoclaves, depending on the configuration.
All the features and benefits of our vertical VARIOKLAV® BlueLine floor-standing autoclaves at a glance:
- Internal capacity up to 155 litres (model 155S)
- Steam generation either directly within the chamber or via a separate unit
- Thermal barrier in accordance with TRB 402 for liquids
- Self-contained compressed air supply for the seal control circuit, safety interlock and pneumatic valves
- Easy-to-clean sterilisation chamber with no internal heating elements or feed water
- Can be optionally equipped with lift, vacuum, cooling, drying, filtration, documentation and media temperature control modules
- Available with matching VARIOKLAV® accessories such as condensate collection tanks, storage tanks, magnetic stirrers, lifts, castors, wire and sheet metal insert baskets, hanging shelves, insert shelves and base frames.
BlueLine module options
Technical data
| 65T | 75T | 100T | 135T | ||
| External dimensions (B/T/H) | [mm] | 520/700/850 | 540/810/780 | 540/1.010/780 | 640/890/880 |
| Sterilization chamberr (Ø/T) | [mm] | 330/330/630 | 400/600 | 400/800 | 500/700 |
| Volumen | [l] | 65 | 75 | 100 | 135 |
| Weight[1] | [kg] | 150 | 150 | 170 | 180 |
| Volume (steam generator) | [l] | 6,4 | 6,4 | 8,2 | 8,2 |
| Steam generator | [bar] | 5,5 absolut | 5,5 absolut | 5,5 absolut | 5,5 absolut |
| Heating capacity (electric) | [Kw] | 4,5 | 4,5 | 4,5 | 7,5 |
| Power consumption | [Kw] | 6,0 | 6,0 | 8,5 | 8,5 |
| Double jacket volume (Option RM, RG, VT)[2] | [l] | 0,7 | 0,7 | 0,7 | 1,0 |
| Heat loss to the environment as a% of | [%] | 8 to 15 | 8 to 15 | 8 to 15 | 8 to 15 |
| Rated current | [A] | 3 x 8 | 3 x 8 | 3 x 8 | 3 x 8 |
| 155T | 175T | 195T | ||
| External dimensions (B/T/H) | [mm] | 640/990/880 | 640/1.090/880 | 640/1.190/880 |
| Sterilisation chamber (Ø/D) | [mm] | 500/800 | 500/800 | 500/900 |
| Volume | [l] | 155 | 175 | 195 |
| Weight[1] | [kg] | 205 | 210 | 220 |
| Volume (steam generator) | [l] | 8,2 | 8,2 | 8,2 |
| generator | [bar] | 5,5 absolut | 5,5 absolut | 5,5 absolut |
| Heating power (electric) | [Kw] | 7,5 | 7,5 | 7,5 |
| Power consumption | [Kw] | 8,5 | 8,5 | 8,5 |
| Double jacket volume (Option RM, RG, VT)[2] | [l] | 1,0 | 1,0 | 1,0 |
| Heat loss to the environment as a % of heating power | [%] | 8 bis 15 | 8 bis 15 | 8 bis 15 |
| Rated curren | t[A] | 3 x 8 | 3 x 8 |
