VARIOKLAV® BlueLine Tischautoklaven

Powerful and compact steam sterilizers designed to meet the highest standards of performance and convenience

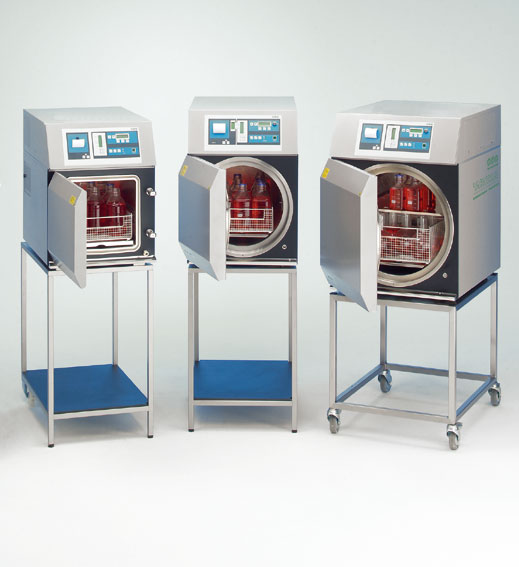

Our VARIOKLAV® BlueLine benchtop autoclaves impress with their outstanding capacity in a minimal footprint: equipped with a space-saving swing door, our BlueLine benchtop units enable professional autoclaving in the smallest of spaces. With volumes ranging from 65 to 195 litres, our BlueLine benchtop range offers a wide selection to suit a variety of laboratory sizes.

All the features and benefits of our horizontal VARIOKLAV® BlueLine benchtop autoclaves at a glance:

  • Efficient sterilisation of up to 28 1-litre bottles in a single cycle (Model 135T)
  • Low feed water consumption despite high throughput
  • Slim design combined with particularly shallow depths of 700 to 1,190 mm
  • Integrated thermal barrier in accordance with TRB 402 for liquids
  • Height-adjustable shelves in four possible positions
  • Individual and versatile programme control for flexible autoclaving of a wide variety of sterilizable items
  • Particularly easy cleaning of the sterilisation chamber thanks to the intelligent VARIOKLAV® design with no heating elements inside the chamber
  • Optionally expandable with modules for cooling, vacuum generation, vacuum drying, exhaust air filtration and condensate sterilisation, media temperature control and process documentation
  • Erhältlich mit speziellem VARIOKLAV® Zubehör, wie Kondensat-Auffangbehälter, Vorratsbehälter, Einlegeböden und Untergestelle.

BlueLine module options

Technical data

65T75T100T135T
External dimensions (B/T/H) [mm] 520/700/850 540/810/780 540/1.010/780 640/890/880
Sterilization chamberr (Ø/T) [mm] 330/330/630 400/600 400/800 500/700
Volumen [l] 65 75 100 135
Weight[1] [kg] 150 150 170 180
Volume (steam generator) [l] 6,4 6,4 8,2 8,2
Steam generator [bar] 5,5 absolut 5,5 absolut 5,5 absolut 5,5 absolut
Heating capacity (electric) [Kw] 4,5 4,5 4,5 7,5
Power consumption [Kw] 6,0 6,0 8,5 8,5
Volume of double jacket (Option RM, RG, VT)[2] [l] 0,7 0,7 0,7 1,0
Wärmeabgabe an Umgebung in % der Heizleistung [%] 8 to 15 8 to 15 8 to 15 8 to 15
Rated current [A] 3 x 8 3 x 8 3 x 8 3 x 8
640/1.090/880 640 220 Volume (steam generator)[l]8,28,28,2 Steam generator[bar]5,5 absolut5,5 absolut5,5 absolut Heating power (electric) [Kw]7,57,57,5 Power consumption[Kw]8,58,58,5 Rated current[A]3 x 83 x 8
155T 175T 195T
External dimensions (B/T/H) [mm] 640/990/880/1.190/880
Sterilisation chamber (Ø/D)[mm]500/800500/800500/900
Volume [l] 155 175 195
Weight[1] [kg] 205 210
Volumen Doppelmantel (Option RM, RG, VT)[2] [l] 1,0 1,0 1,0
Wärmeabgabe an Umgebung in % der Heizleistung [%] 8 bis 15 8 bis 15 8 bis 15
